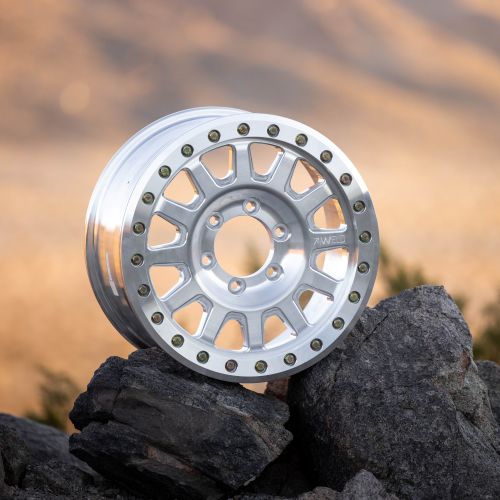

74W Forged Beadlock
Engineered and manufactured entirely in the USA, these beadlock wheels reflect complete control over design, forging, and machining. The result is a precision-built product that meets the same standards as our portal axles.
-
No need to reinvent the wheel. Just do it better.
Our beadlocks are designed, forged, and machined in the USA.
Why does that matter? Because controlling the process is how you build the best possible product.
We designed these wheels in-house from the ground up, engineering them to work seamlessly with our portal axles and brake packages while taking full advantage of the machines we run every day.
We partnered with a forging house to create our own dies, with the blanks rotary forged on a 1200-ton press. Once those blanks arrive at our facility, they go straight onto a Hermle 5-axis mill where our design is machined, including details like a pocketed valve stem. From there, every wheel is inspected and quality-checked using the same processes we apply to our portal axles and aerospace parts, including CMM inspection.
We prefer working with trusted industry partners to produce accessory components for our portal systems, but when we decide to make something ourselves, we don’t cut corners.
- Bolt Pattern: 6×5.5″
- Diameter: 17″
- Width: 8.5″
- Offset: +50mm
- Hub Bore: 4.25″
