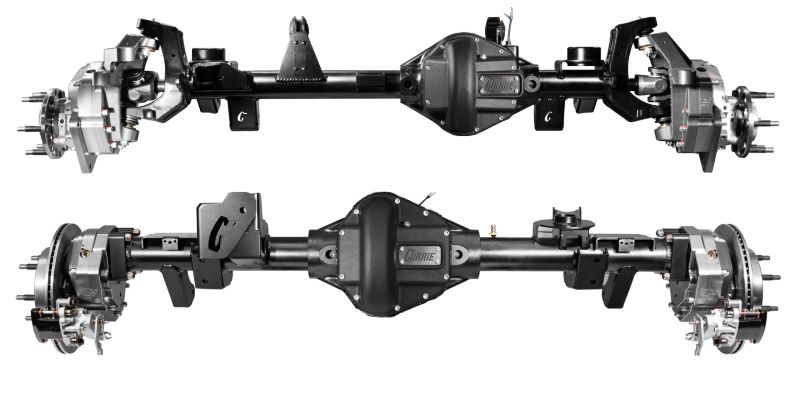

Currie 44/60 Jeep Portal Axle Package

The Currie Portal set includes the acclaimed Currie 44 front and 60 rear axle assemblies paired with 74Weld four-gear bolt on portals. This is the ultimate axle package for designed to bolt right into the JK/JL/JT platform giving you all the benefits of a Dana 60 knuckle, ball joints, and axle shafts. The full 35 spline units are designed to tackle the toughest off-road trails and obstacles, giving you the confidence to push your vehicle to its limits.

Lead times are based around Currie’s lead time on building the housings. Typically 8 weeks. Call us for most updated information.

-

Pay a deposit of 25%
  • Complete ready to bolt in front hybrid 44/60 front portal axle
  • Complete ready to bolt in rear 60 portal axle
  • Larger front and rear rotors
  • Wilwood rear brake caliper with integrated parking brake kit
  • All necessary installation components
  • Fully ABS compatible direct swap

Currie 44 Hybrid Portal Front Axle:

  • Currie 44 High-Pinion Center Section with Thick Walls and Webbing
  • 3 x .5 in. Wall DOM Axle Tubes
  • Forged 05+ Superduty UD60 1-Ton Inner Knuckles and Ball Joints
  • 74Weld Sealed Chromoly Upper Ball Joint
  • 1480 Currie 2-Piece Inner 35 Spline Axle
  • 1480 Forged 1-Piece 35 Spline Stub shaft
  • 71-Inch Effective Width with Recommended Wheel Offset (See Notes)
  • Satin Black Powder Coat Finish for Long Lasting Protection



Currie HD60 Portal Rear Axle:

  • Currie HD60 Center Section with Thick Walls and Webbing
  • 3.5 in. Diameter, .375 in. Wall DOM Axle Tubes
  • 35-Spline Full-Floating 4340 Chromoly Axles
  • 71-Inch Effective Width with Recommended Wheel Offset (See Notes)
  • Satin Black Powder Coat Finish for Long Lasting Protection



74Weld Portals:

  • 4-Gear Portal Design for Ultimate Strength and Reliability
  • Provides 3.9-Inches of Axle Lift for Maximum Ground Clearance
  • Provides 22% Gear Reduction to Reduce Drivetrain Stress
  • 14 in. Front and 13.750 in. Rear Vented Rotors Provide Abundant Stopping Power
  • Retains the Factory Front and Rear Brake Calipers
  • 1-Ton, 8 Lug Unit Bearings with JK/JL/JT Compatible ABS Tone Ring



The Currie 44/60 Hybrid Portal Axles are complete bolt-in axle assemblies with all required brackets and mounts in place. The vehicle’s factory rear driveshaft will require modification or replacement to accommodate the larger 1350 series u-joint and 60 series housing. New 8-lug wheels are required.

Brakes: For the JK Portal Axle package, you must also purchase the Wilwood Aero6 Front Brake Package. Factory brakes are NOT compatible.

Front Axle Disconnect (FAD): This axle assembly eliminates the factory FAD and requires a computer programmer, such as the Tazer Mini or Tazer Lite, to disable the factory sensor and turn off the FAD warning message

Wheel Bolt Pattern and Offset: Requires 8 x 6.5 (8 x 165.1 mm) bolt pattern wheels. We strongly recommend a 25 mm positive offset (approximately a 5.5-inch backspace)

Overall Width: The axle width with portals installed is 73.25 inches. The effective overall width with a 25 mm positive offset wheel is 71 inches.

Vehicle Lift: If using the factory height suspension or a leveling kit without bump stop spacers, an aftermarket track bar is required to clear the differential cover. The RockJock 4×4 track bar RJ-9120FJLF provides ample clearance.

Tie Rod: Includes SteerSmarts Pro Series HD Tie Rod.

Tire Size: Up to 42-inches
